IMPRESSION 1

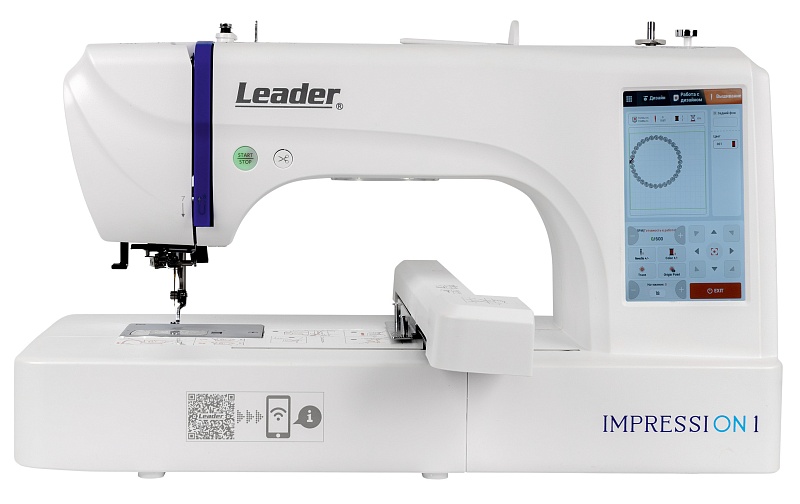

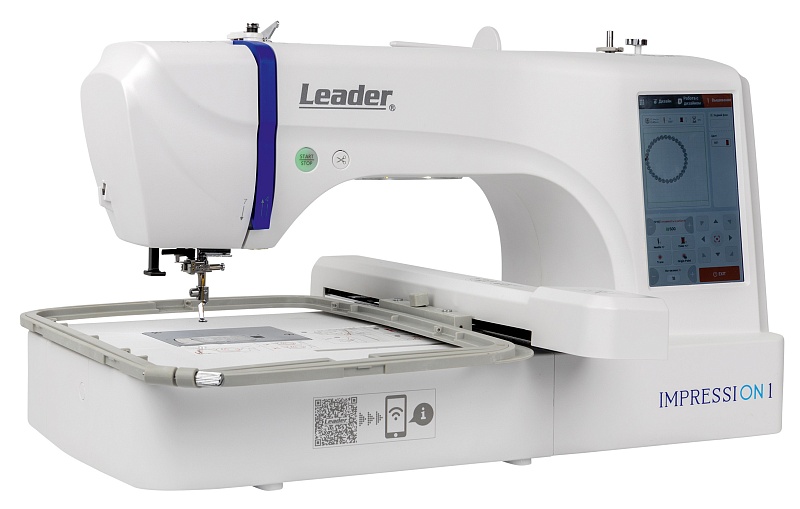

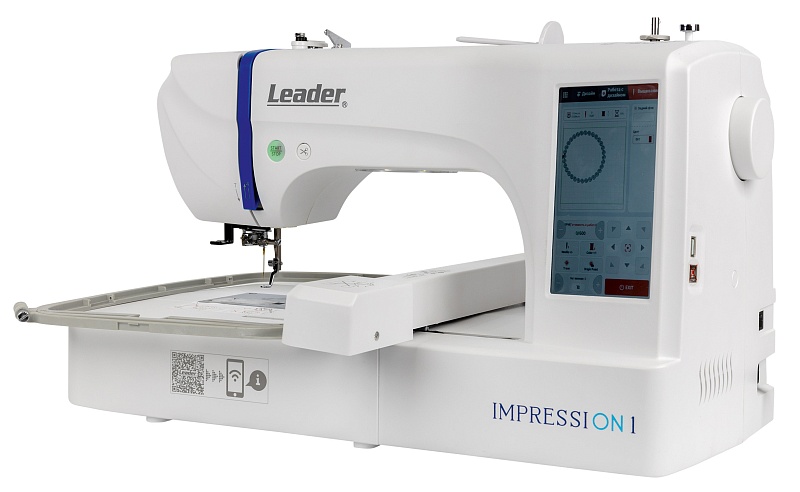

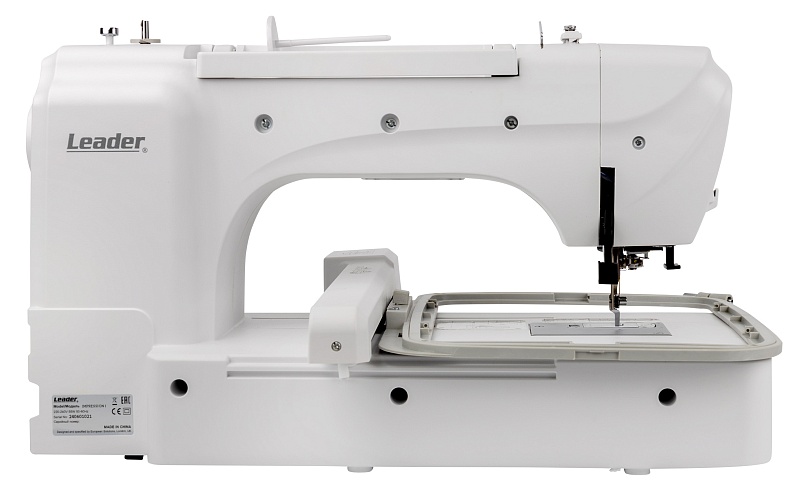

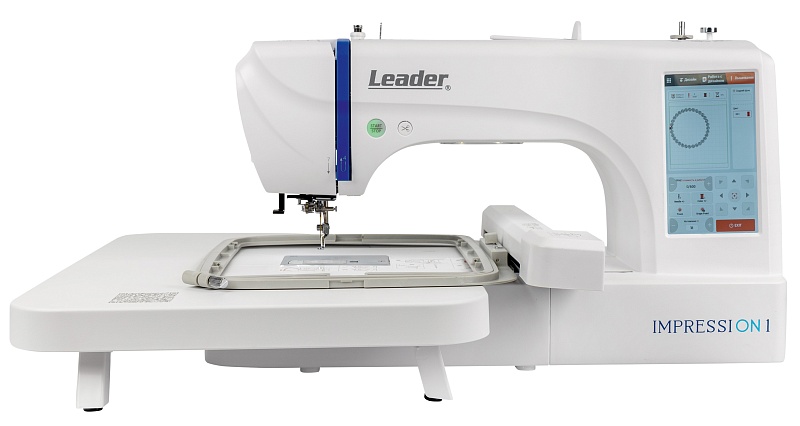

Embroidery machine Leader IMPRESSION 1
Professional embroidery machine Leader IMPRESSION 1 is equipped with a large color touch-sensitive Russified LCD display with a 7-inch diagonal.
The machine will be an excellent choice for advanced users and will be convenient for beginners thanks to its intuitive interface.
Main features
242 built-in embroidery designs
9 font types
Maximum embroidery area — 200 × 280 mm
Maximum embroidery speed — 860 rpm
Automatic thread trimming
Design editor on a large color 7″ LCD touch-sensitive display
Upper and lower thread breakage sensor
Return to the break point by stitches or colors
Embroidery resumption
Programming the remaining thread length when trimming jump stitches
Advanced automatic needle threader
Attachable extension table
Designs and editing
A choice of 242 embroidery designs will help bring the most fantastic projects to life:
156 designs
36 three-dimensional hollow letters for appliqué
26 large letters in floral decoration
24 decorative monogram frames
9 font types

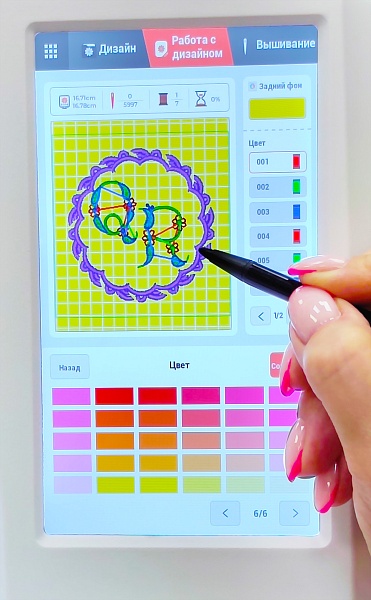

On the large Russified color touch-sensitive display, you can:
edit and combine designs;
mirror and group objects;
change the color of the main embroidery area to match the fabric color;
delete unnecessary objects;
change the thread color of a specific object;
combine all design colors into one color;
save the combined design in the machine’s memory.
Separate work with fonts allows you to edit letters, change their color, rotate, stretch and compress them, as well as arrange them along an arc or vertically.
The information window displays:
the width and height of the current design;
the number of completed stitches and the total number of stitches in the design;
the number of completed colors and the total number of colors in the design;
the embroidered portion of the design as a percentage.
Ease of operation
When the machine is switched on, the display shows an information window with tips and warnings. One of the 11 available display menu languages can be selected.

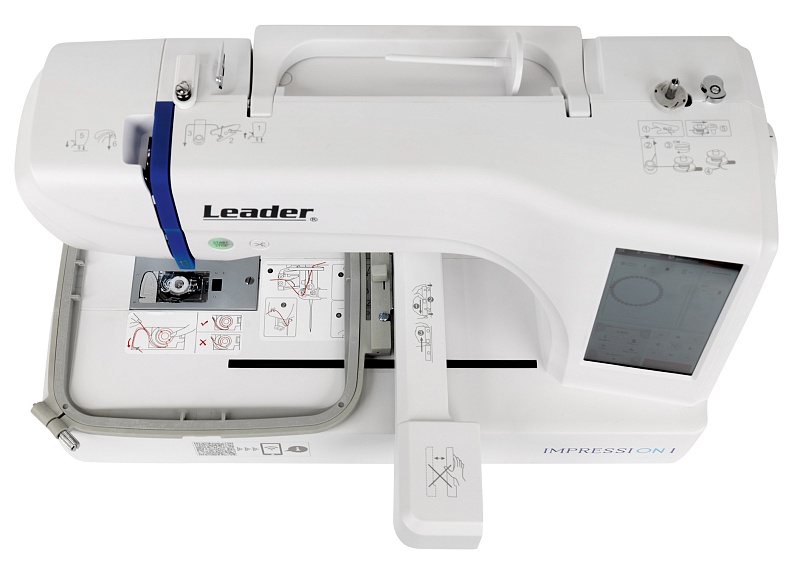

Convenient and quick threading of the upper and bobbin threads is supplemented by helpful diagrams with tips applied to the machine panels.
The machine is equipped with an upper and lower thread breakage sensor. Special buttons can be used to return the needle to the break point. Moving forward and backward by 1, 10 or 100 stitches, as well as moving by colors, is available.
The machine remembers the last design being embroidered and, when switched on, can offer to continue the embroidery.
If necessary, the remaining thread length can be programmed when trimming jump stitches.
Working with hoops and garments

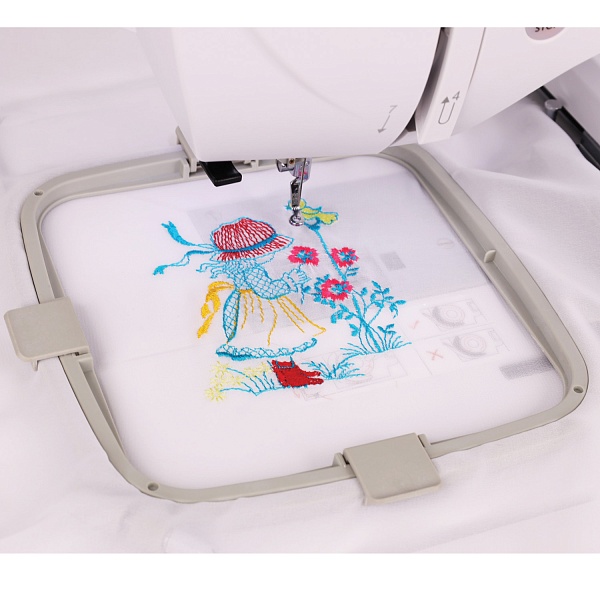

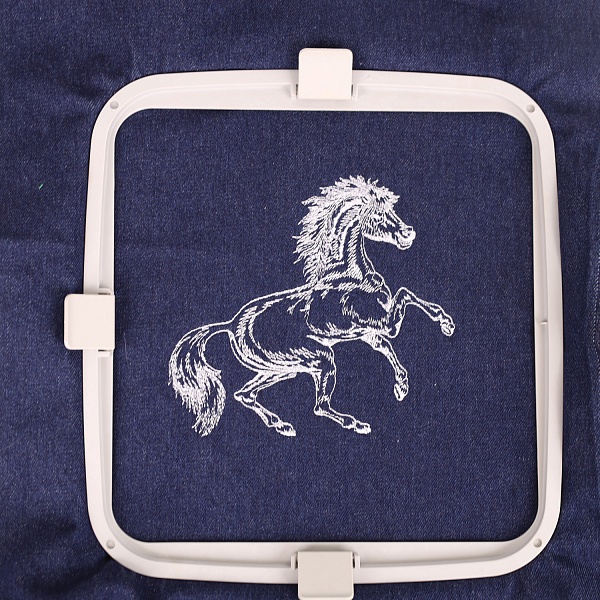

The machine allows embroidery in large hoops measuring 200 × 280 mm at a professional speed of up to 860 rpm, as well as working with various fabrics: organza, leather, thick and thin materials, and denim.

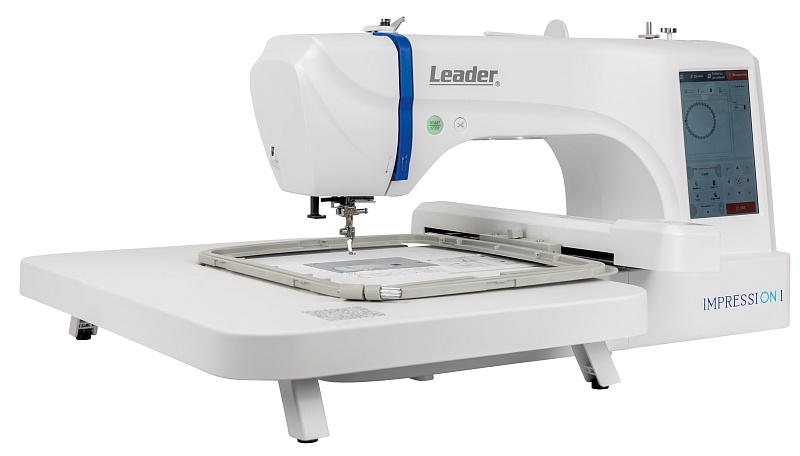

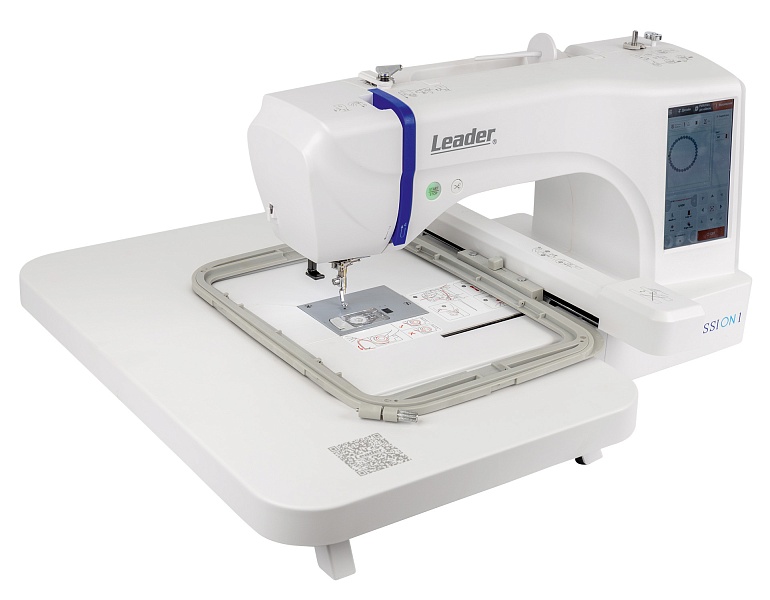

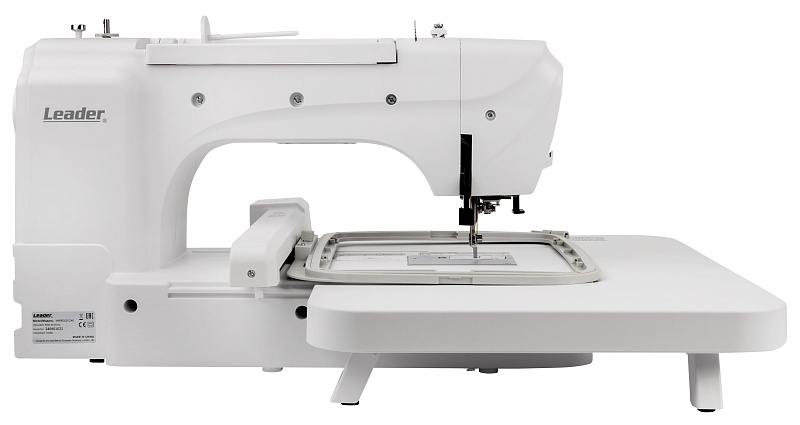

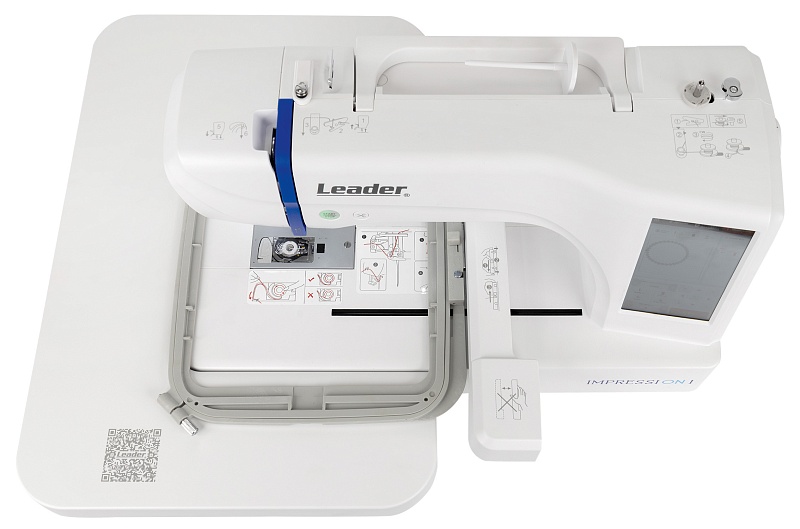

For embroidering finished three-dimensional items and outerwear, use the attachable extension table. It securely supports the item and large hoop during embroidery.

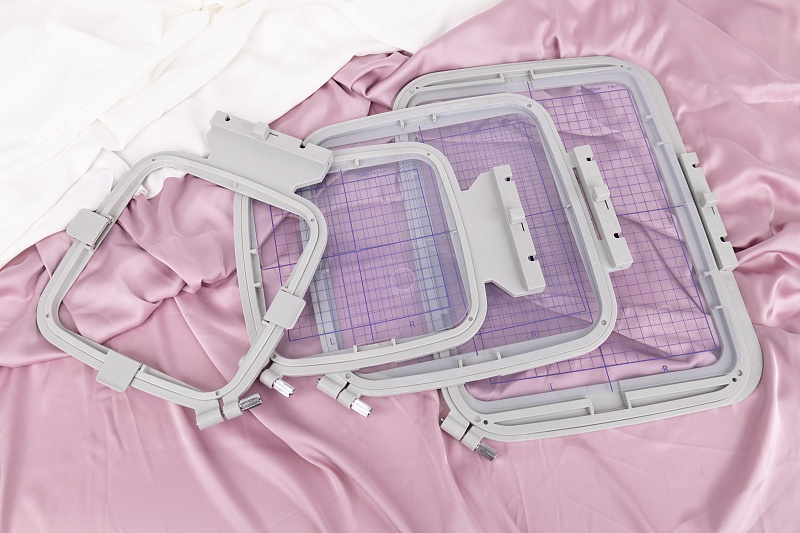

The set includes hoops:
200 × 280 mm + template;
200 × 200 mm + template;
140 × 140 mm + template;
140 × 140 mm with clamps.
Hoop templates are used for precise design placement, determining the center of the hoop and the outer limits of the embroidery area.
Convenient clamps are provided for securely holding thin fabric in the hoop. Even difficult fabric can be hooped neatly without bending or creasing.
Connection and formats
New embroidery designs can be loaded via USB and saved in the machine’s memory.
The machine supports embroidery formats: DST, DSB.
Specifications
Display: ergonomic 7″ liquid crystal display with touch screen, 177 mm diagonal
Real-time design display on screen: yes
Convenient display menu: choice of 11 languages
Saving design parameters in the machine’s memory: yes
Duplicating and combining designs, continuous embroidery: yes
Supported formats: DST, DSB
Embroidery area: 200 × 280 mm
Programmable embroidery speed: 150–860 rpm
Embroidery designs: 242
Designs: 56
Fonts: 9 types
Large hollow letters: 36
Large letters in floral decoration: 26
Decorative monogram frames: 24
Hook: horizontal, “quick start,” with thread trimming
Bobbin winding: fast, with built-in thread cutter
Needle threader: advanced automatic
Thread cutter: built-in
Lighting: 5 LEDs brightly illuminating the large embroidery work area, with a complete shutdown mode
Automatic upper thread tension: yes
Stitch counter sensor: when executing a design
Upper and lower thread breakage sensor: yes
Programming the thread length when trimming jump stitches: 5–50 mm
Design editor functions
Editing, combining and merging multiple design objects
Grouping and ungrouping objects
Changing the background color of the embroidery area to match the fabric color
Rotating the design counterclockwise or clockwise by 1, 10 or 90 degrees
Changing the design scale: enlarging and reducing along the X and Y axes
Mirroring horizontally and vertically
Moving forward and backward by 1, 10 and 100 stitches
Moving forward and backward by colors
Editing font letters: lowercase and uppercase Latin letters
Changing stitch density, tilt angle, height and spacing between letters
Changing the color, rotating, stretching and compressing letters
Arranging letters along an arc or vertically
Tracing the embroidery outline to determine the boundaries and correctly position the design in the hoop
Returning to the initial point to resume embroidery
Saving the combined design in the machine’s memory
Remembering the last embroidery design and offering to continue embroidery after the machine is switched on
Additional equipment
The set includes a multi-color thread stand. It is used when working with large-wound bobbins.
Power consumption: 55 W
Country of manufacture: China
Net weight: 10.9 kg
Gross weight: 17.4 kg
Dimensions: 610 × 495 × 450 mm
Discover the fantastically enchanting world of embroidery with the unlimited capabilities of the Leader IMPRESSION 1 embroidery machine!
